LABTECH PHOTONICS IS THE DEVELOPER AND MANUFACTURER OF FIBER-OPTIC AND OPTOELECTRONIC COMPONENTS MODULES AND SYSTEMS FOR VARIOUS APPLICATIONS.

about company

LabTech Photonics specializes in the development and production of fiber-optic and optoelectronic components modules and systems for various applications. Specialists of LabTech provide qualified technical support and equipment consult. LabTech’s technologies are designed for: backbone DWDM systems, lidars, Sonet / SDH networks, metrological systems for testing optical components etc.

Main areas of activity:

Development and production of fiber optic components (analogue and digital);
Custom manufacturing and development of components, modules, systems;
Optical fiber communication design for various applications;
Technical consulting, equipping laboratories and production facilities.

Development directions:

Radio photonics, modules of fiber-optic transmission lines;
Optical amplifiers for fiber-optic communications;
Microwave photodiodes and photodetector modules;
Microwave delay lines;
Distributed temperature and vibration fiber sensors.

С BAND ERBIUM DOPED FIBER AMPLIFIER

ABOuT THE PRODUCT:

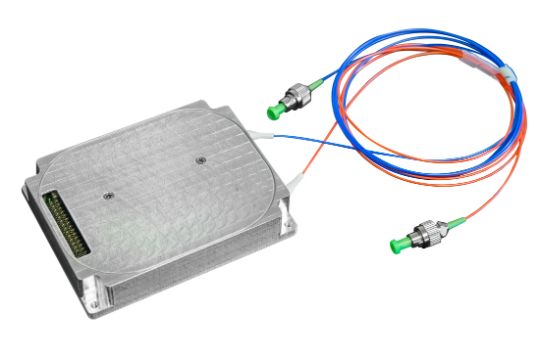

Optical amplifier based on Erbium-doped fiber is a built-in module of compact design. The amplifier is designed to operate in the C-band of a single- mode optical fiber.

The noise figure at the optimal operation mode typically does not exceed 4.2 dB. The module has an open architecture allowing to embed it in any system and incorporate with the management system of the entire system.

Modules can be customized to suite variety of applications. Upon customer request any optical amplifier configuration is available: operating wavelength range, maximum output power, gain etc. Amplifiers can be configured as a pre-amp, inline or booster.

Wavelength band, nm: Min: 1528, Max: 1565, Note: C band
Input power range, dBm: Min: -30, Max: -6
Output power range, dBm: Min: -3, Max: 23
Total output power, dBm: Min: 23
Noise figure, dB: Max: 5,5
PDG, dB (polarization-dependent gain): Max: 0,3
PMD, ps (polarization mode dispersion): Max: 0,3
Return loss, dB: Min: 40
Power supply, V: Min: 2,97 , Max: 3,63
Power consumption, W: Max: 12
Control interface: RS-232 LVTTL 3,3V, Note: 9600 – 115200 bit/s
Operation mode: Automatic Gain Control (AGC), Automatic Power Control (APC), Constant Current (Manual)

Applications

RF over fiber applications for radar systems
CaTV Metrological systems
Microwave photonics
WDM or single channel networks

Features

Low noise figure
Flexible configuration
OEM
Standard command set according to IEC 61291-6-1
Industrial operating temperature range
Customization

Module dimensions (in mm)

Evaluation board dimensions (in mm)

С BAND ERBIUM DOPED FIBER AMPLIFIER

Specify the price when ordering

Wavelength band, nm: Min: 1527.99, Max: 1564.86
Input power range, dBm: Min: -33, Max: 10
Output power range, dBm: Min: -15, Max: 23
Total output power, dBm: Min: 23
Noise figure, dB: Max: 5
PDG, dB: Max: 0,3
PMD, ps: Max: 0,3
Return loss, dB: Min: 40
Operation mode: Automatic Gain Control (AGC), Automatic Power Control (APC), Constant Current (Manual)

Ask a Question

GAIN FLATTENED С BAND ERBIUM DOPED FIBER AMPLIFIER

Specify the price when ordering

Wavelength band, nm: Min: 1527.99, Max: 1564.86
Input power range, dBm: Min: -40, Max: 10
Output power range, dBm: Min: -15, Max: 23
Total output power, dBm: Min: 23
Noise figure, dB: Max: 5
PDG, dB: Max: 0,3
PMD, ps: Max: 0,3
Return loss, dB: Min: 40 Operation mode: Automatic Gain Control (AGC), Automatic Power Control (APC), Constant Current (Manual)

Ask a Question

VARIABLE-GAIN С BAND ERBIUM DOPED FIBER AMPLIFIER

Specify the price when ordering

Wavelength band, nm: Min: 1528, Max: 1564
Input power range, dBm: Min: -32, Max: 5
Output power range, dBm: Min: -15, Max: 21
Total output power, dBm: Min: 21
Noise figure, dB: Typ: 4, Max: 15
PDG, dB: Max: 0,3
PMD, ps: Max: 0,3
Return loss, dB: Min: 40
Operation mode: Automatic Gain Control (AGC), Automatic Power Control (APC), Constant Current (Manual)

Ask a Question
